Electric Bike Kit
This project is a collection of components which can be attached to any standard bicycle to provide electric propulsion.
Parts which were custom designed and 3D printed were the gears, mounting equipment, and battery box.
Parts which were sized and procured were the 24V DC motor, 12V lead acid batteries, an electronic speed controller, timing belt, and miscellaneous hardware.

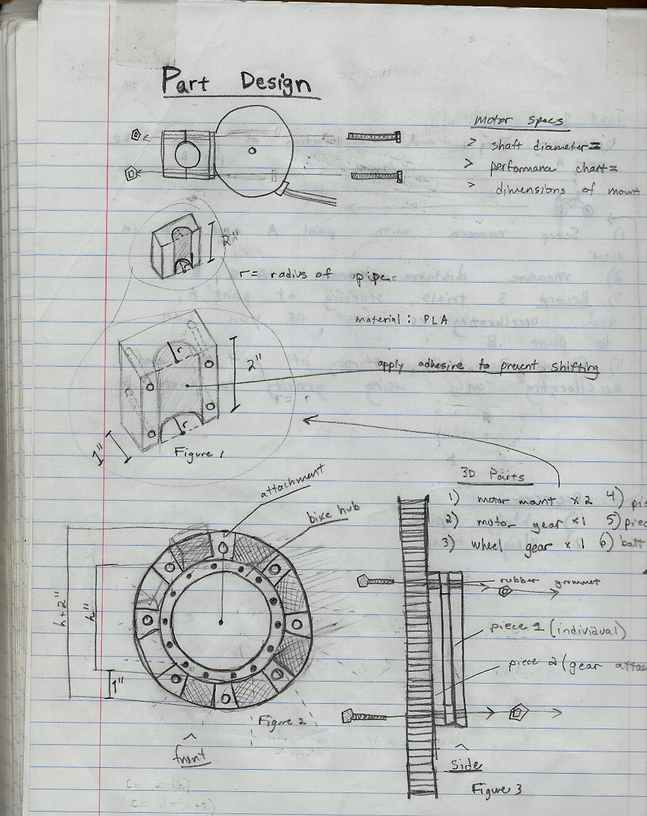

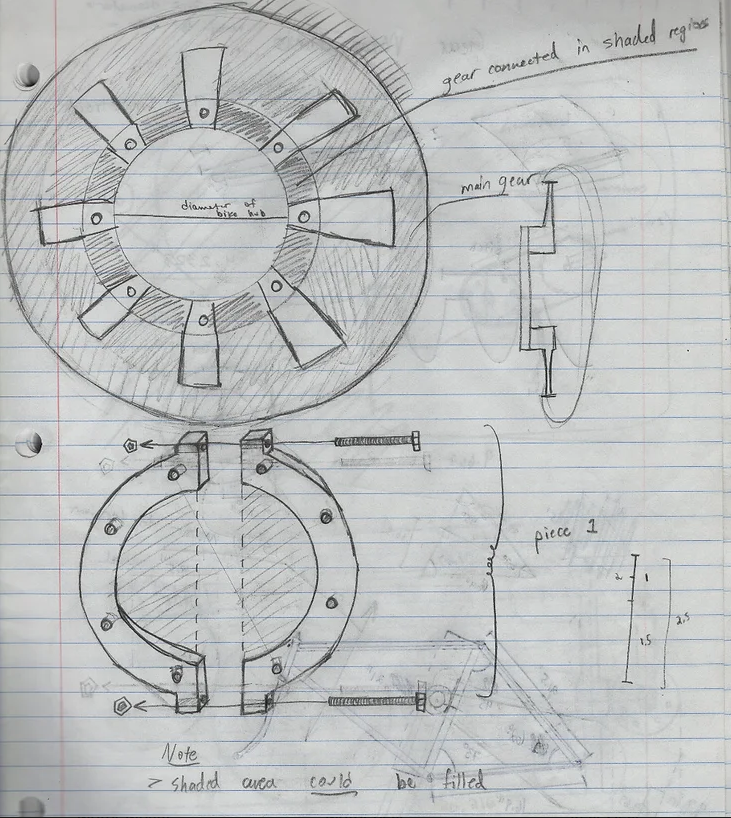

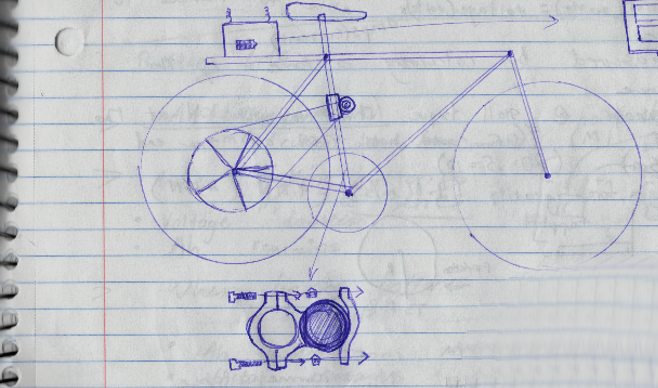

Concept Sketches
3D Models

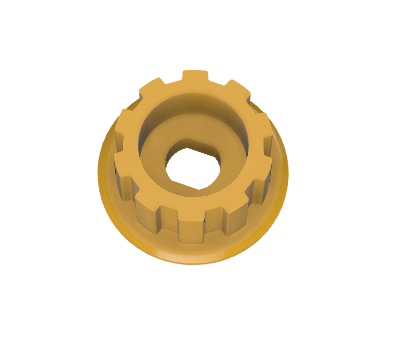

Small Gear

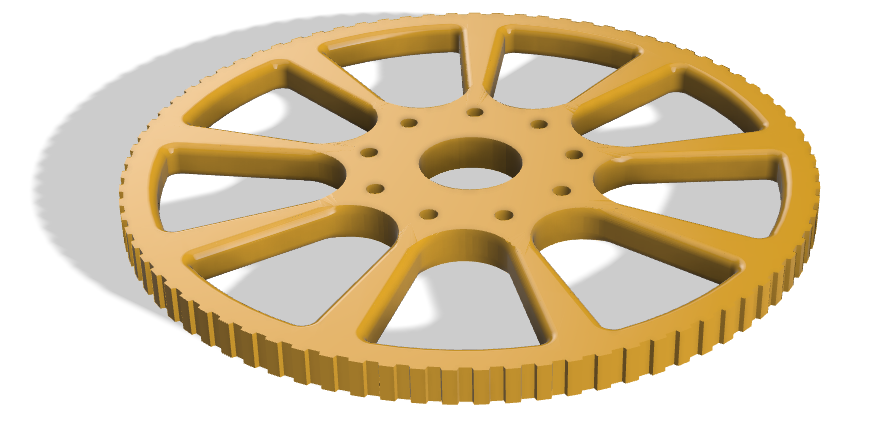

Big Gear

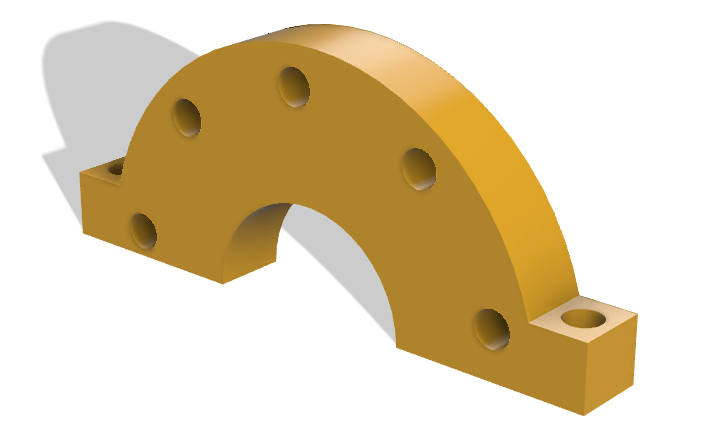

Motor Clamp

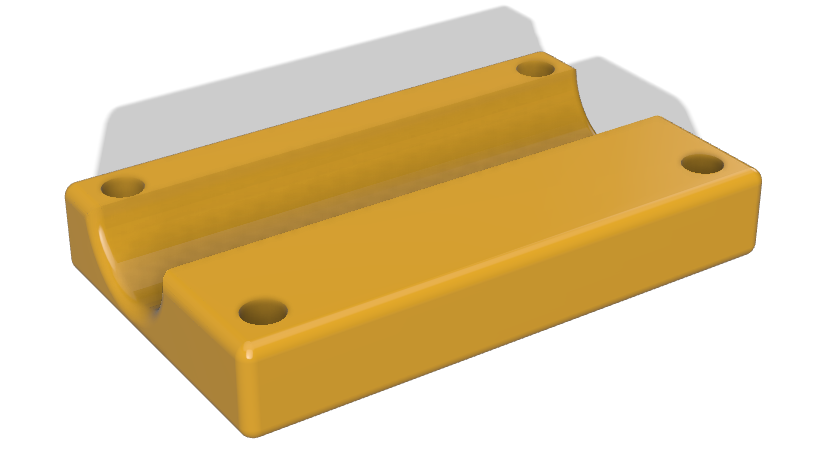

Motor Mount

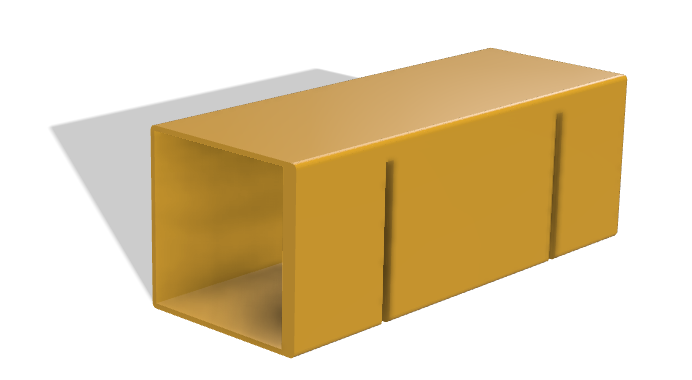

Battery Box

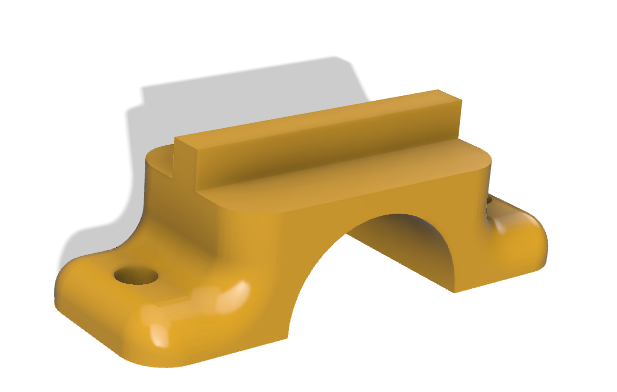

Battery Mount

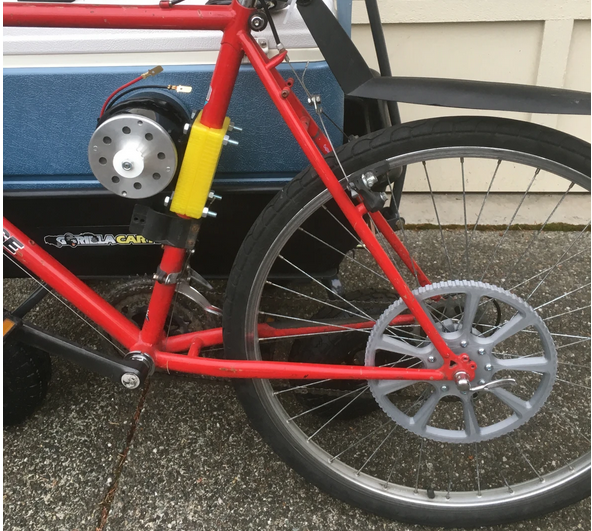

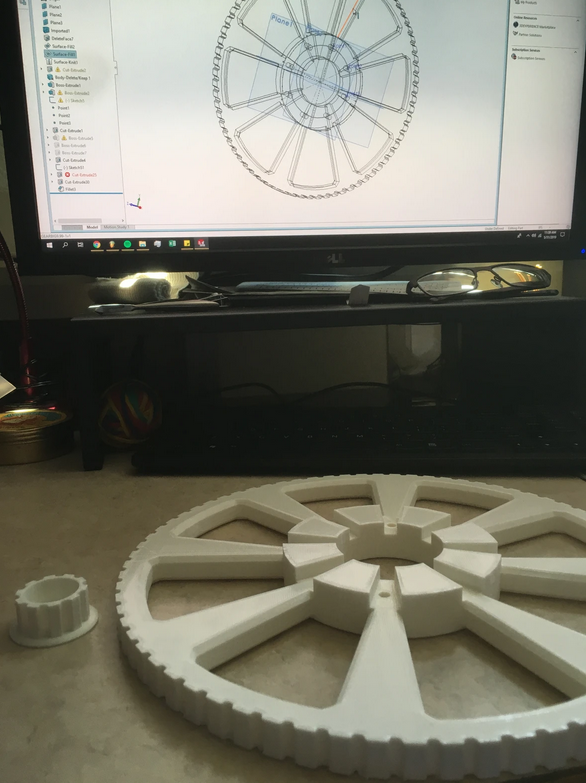

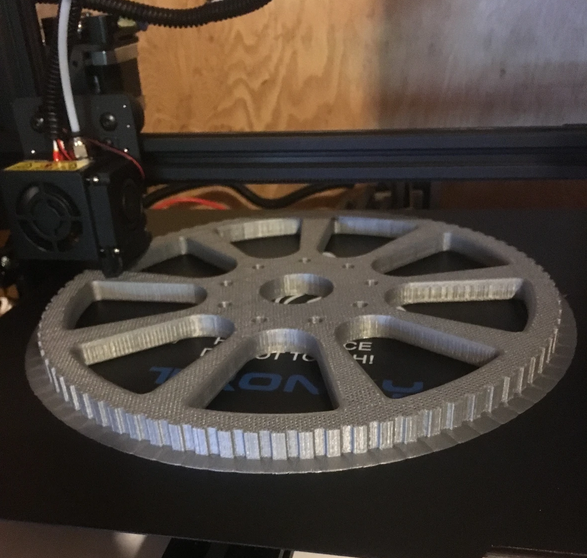

Prototyping
